Fantasy series C6K (S) ~ 3C20KS is widely used in the information collection, transmission, processing, storage and application to each link, its importance is increased with the increasing importance of information application. Fantasy series C6K (S) ~ 3C20KS provides a full range of scalable features, according to the user's flexible configuration.
The castle series C6K (S) ~ 3C20KS is a product with strong adaptability and flexible configuration. The advanced DSP digital control technology can effectively improve the performance and reliability of the system, and realize the integration and miniaturization of higher power density. At the same time in order to meet the individual needs of users, the castle series C6K (S) ~3C20KS provides a very rich extensible function, the user can according to the need for flexible configuration.
Adapting to China's power grid environment
The output power is 0.8 - suitable for the development trend of load to achieve stronger carrying capacity.
The efficiency of the whole machine is as high as 90%, the power loss of UPS is reduced, and the user's cost is saved.
Adopting active power factor correction (PFC) technology, the input power factor is close to 1, which greatly reduces the pollution to the city power grid.
To deal with the Chinese grid design requirements, provide the wide input voltage range, canadapt to the bad power grid;
The excellent input frequency range enables the UPS to adapt to different power supply equipment such as generator.
Flexible configuration, because of the need to change
Rich expansion function, fully meet customer needs.
Online maintenance function: can maintain online maintenance under the condition of continuous load power supply.
Remote power interruption function (EPO): when the emergency happens, it can turn off the UPS. quickly
Parallel components: parallel capacity expansion and parallel redundancy function, to provide users with power planning flexibility and more secure protection.
Dust proof components: enhance the dust rating of products in industrial environment.
Isolation transformer: provide isolation protection for users.
Miniaturization, low noise
Using advanced control technology and manufacturing process, greatly enhance the power density of the products, reduce product area, in today's land office space, save valuable space for you. At the same time, the machine is running low noise, maintain your quiet working environment.
Intelligent battery management: the use of advanced intelligent charging control mode, to select the optimal charging method according to the type of battery and battery state, which extended the life of the battery, and regular automatic battery charge discharge management. And the battery voltage (192V or 240V) can be freely selected according to the requirement.
Users can query and set the corresponding UPS control parameters according to their requirements, and realize the intelligent management of UPS.
Automatically identify and adapt to the 50/60Hz power system, meet the requirements of different power systems.
Fault protection and alarm functions: to provide input and output overvoltage or undervoltage, overcharge or low voltage, overload, short-circuit fault protection complete and clear alarm, fault alarm function.
Adopting advanced DSP digital control technology, the product performance is better, the quality is more stable and reliable.
The load and overload capacity is strong, and the load compatibility is good, and it can be applied to various types of load.
Strong anti-interference ability, in line with the strict requirements of IEC61000-4 for electromagnetic interference, to provide a clean power environment for your equipment.
Rich communications and monitoring
Provide RS232 communication interface, can be used for local or remote power management.

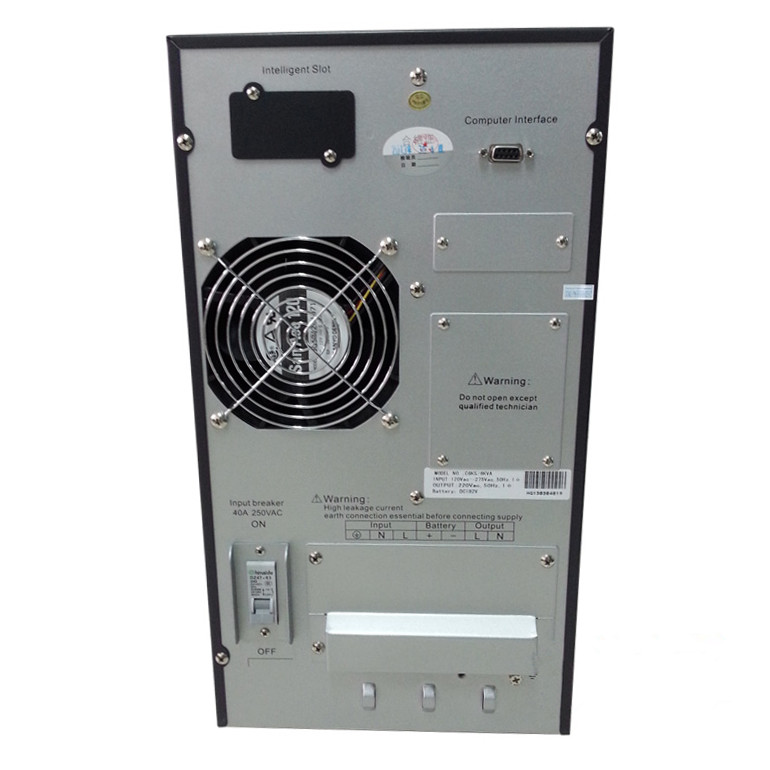

Provide intelligent slot (IntelligentSlot), the user may need to load the Santak WebPower card (SNMP card), CMC card, AS400 card (relay) to realize the function of remote monitoring and management.
|Size (width, depth, height, height) mm||248×500×616||240×500×460||248×500×616||240×500×460||248×500×616|
|Net weight (Kg)||57||18||67.5||20||27||35||35|
|Apparent power (KVA)||6KVA||6KVA||10KVA||10KVA||10KVA||15KVA||20KVA|
|Active power (KW)||4.8KW||4.8KW||8KW||8KW||8KW||12KW||16KW|
|Input mode||Single phase grounding|
|output|| || || || || || || |
|Output mode||Single phase grounding|
|Voltage||220VAC * (1 + 1%) inverter output|
|frequency||46Hz ~ 54Hz (city power mode, followed by city power), 50Hz * (1 + 0.1%) (battery mode)|
|Overload capacity||105% to 125%, 1 minutes after the bypass, 125% to 150%, 30 seconds after the bypass, 1 minutes after the broken output; >150%, 0.5 after bypass|
|Distortion degree||THD<2% (linear load)|
|Battery (battery used at high temperature, life will decline sharply)|
|Battery voltage||Standard 192VDC (customized for 240V)|
|Battery capacity x quantity||12VDC x 16 section (can be customized for 20 sections)|
|Backup time||4 minutes (full load)||Depends on the capacity of the external battery||3 minutes (full load)||Depends on the capacity of the external battery|
|Charging time||7 hours charge to 90%||Depends on the capacity of the external battery||7 hours charge to 90%||Depends on the capacity of the external battery|
|Communication and monitoring function|
| ||RS232 (can turn 485), dry nodes, smart slot (scalable SNMP, SMS and other monitoring methods)|
Note: the product should be in kind. Product design, technical specifications updated without notice
